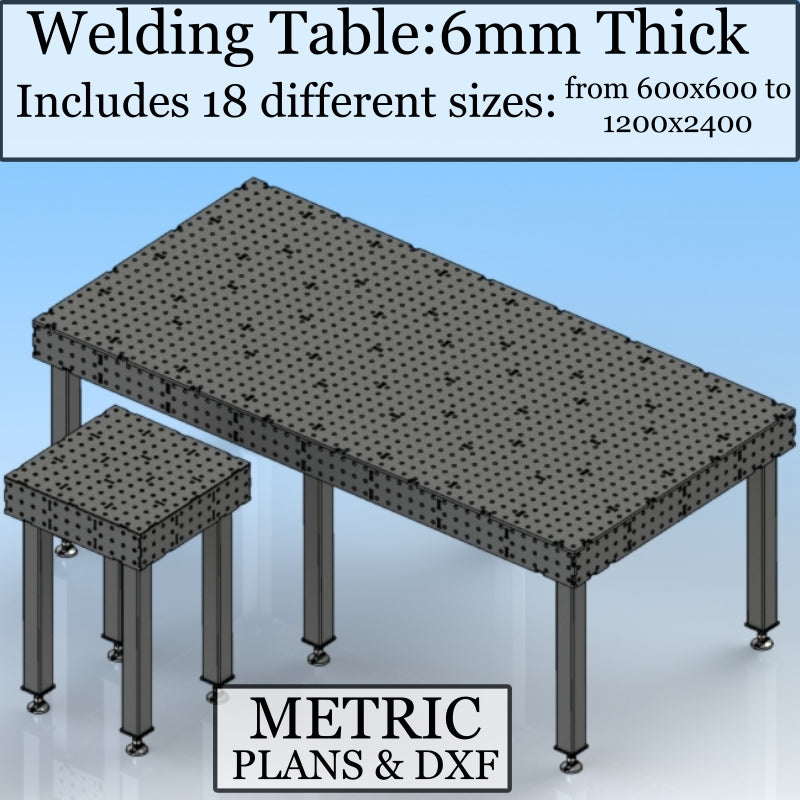

This is the complete package for a 6mm thick table, 16mm holes & 50mm spacing welding fixture table with DXF files and PDF plans
All table sizes available on this package (in mm):
600x600, 600x900, 600x1200, 600x1500, 600x1800, 600x2100, 600x2400- 900x900, 900x1200, 900x1500, 900x1800, 900x2100, 900x2400- 1200x1200, 1200x1500, 1200x1800, 1200x2100, 1200x2400
Don't use CNC plasma table
DXF FILES ARE SAVED IN AUTOCAD 2000 VERSION (R15)
Recommandations:
1-IT IS STRONGLY RECOMMENDED TO PRE-ORDER THE TESTING PLATE SUPPLIED IN THE TABLE'S PACKAGE, BEFORE ORDERING ANY LASER CUT PLATES.
USING THE TEST PLATE,PERFORM A TEST FIT WITH THE PINS (CRS SHAFT) AND ACCESSORIES
YOU ALREADY HAVE AND CHOOSE THE HOLE SIZE THAT FITS THE BEST.
IF YOU CHOOSE TO OPT FOR A LARGER OR SMALLER HOLE THAN YOUR CURRENT HOLE IN THE DESIGN,
IT IS YOUR RESPONSIBILITY TO MAKE THE CHANGES IN ALL DXF FILES,
USING A SOFTWARE THAT CAN PROCESS THIS DOCUMENT FORMAT
2-WE CANNOT GARANTEE A GOOD FIT BETWEEN THE LASER CUT PLATES AND ANY OTHER PINS AND/OR ACCESSORIES
3- HOLES SIZE MAY VARY BY SUPPLIER AND MATERIAL, HOLES COULD BE TOO TIGHT OR TOO LOOSE, YOU MUST VALIDATE WITH PRE-TESTING
4-WE CANNOT GARANTEE THE FLATNESS OF THE TABLE, SINCE YOU ARE PERFORMING THE ASSEMBLY OF THE TABLE AND ACCESSORIES
5-NO REFUNDS WILL BE GIVEN OR ANY FINANCIAL COMPENSATIONS IF YOU'RE NOT SATISFIED WITH THE END PRODUCT,
IT IS YOUR RESPONSABILITY TO DO THE PRE-TESTING AND TO DO THE PROPER ASSEMBLY OF THE TABLE AND ACCESSORIES
6-THE DESIGNER AND SUPPLIER OF THESE PLANS CANNOT BE RESPONSABLE FOR ANY ERRORS, MISS MATCHES
OR DISSATISFACTION OF THE END RESULT/PRODUCT
7-BEFORE ORDERING, DOUBLE CHECK ALL PLATE'S QUANTITY, QUANTITY FROM BILLS OF MATERIAL COULD BE WRONG.
8-ANY 16mm PINS AND/OR ACCESSORIES WON'T FIT IN A 5/8'' TABLE / ACCESORIES, EVEN FROM OTHER SUPPLIERS
9-ANY 5/8'' PINS AND/OR ACCESSORIES WILL BE LOOSE IN A 16MM TABLE / ACCESORIES, EVEN FROM OTHER SUPPLIERS
10-DON'T MIX METRIC PINS / PLATES / TABLES / ACCESSORIES WITH IMPERIAL PINS / PLATES / TABLES / ACCESSORIES AND VICE VERSA.
11- GRIND OFF ALL EDGES FROM THE LASER CUT PLATES, DON'T LEAVE ANY BURR, OTHERWISE IT WILL IMPACT THE TABLE'S FLATNESS
12-CLAMP ALL INTERSECTIONS AND SIDE PLATES BEFORE WELDING
13-USE FEELER GAUGE BETWEEN THE RIBS AND THE TOP PLATE, TO VALIDATE THAT THERE IS NO GAPS
14-USE ALL THREADS TO CLAMP SIDE WAYS THE SIDE PLATES TOGETHER WITH THE TABLE
15- DON'T FULLY WELD THE TABLES / ACCESSORIES, PERFORM A 1'' (25mm) STITCH WELD ON ALL INTERSECTIONS AND IN BETWEEN THEM.
16-THESE PLANS ARE NOT FOR COMMERCIAL USE, ONLY FOR PERSONAL USE.
17-YOU CANNOT SALE AND/OR REPRODUCE THESE PLANS FOR YOUR OWN PERSONAL OR COMMERCIAL BENEFIT
18-YOU CANNOT SHARE THESE PLANS FOR FREE
